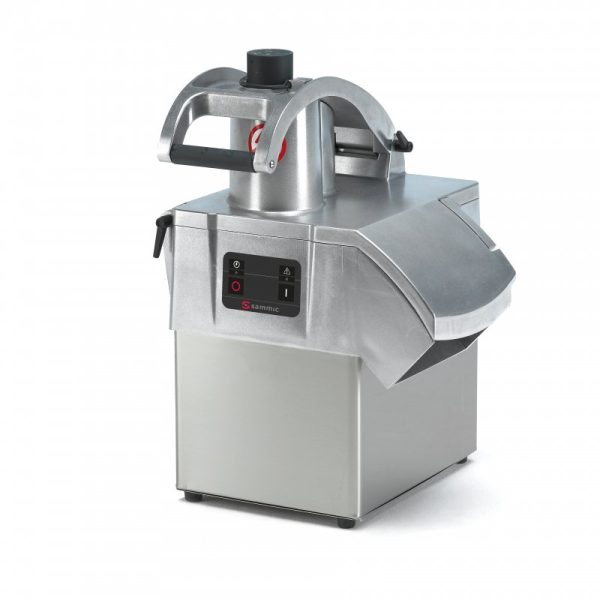

Commercial vegetable preparation machines

Description

COMPACT line: Compact design and commercial performance
  • Available in 1-speed ACTIVE range and variable-speed ULTRA range with high-efficiency “brushless” technology.
  • High capacity: up to 350 kg/h hourly production.
  • Lateral and orientable product ejection (left side / right side product ejection).
  • Exclusive gravity slide system: complete with gravity product expulsion ramp and ejection disc. The slide allows the product to be reconstructed for subsequent preservation or presentation.
  • Possibility of extending its functionality by adding the cutter bowl with blades.
HEAVY-DUTY line: A perfect cut
  • Sturdy construction in food-grade best quality materials.
  • Different motor blocks and attachment available.
  • Guarantee of a uniform cut with minimal effort, without deterioration of the food and generating less liquid.
  • They can reach an hourly production of up to 1000 kg.
Designed for commercial and continuous use
  • The motors allow continuous use.
  • The control boards are electronic, watertight and very intuitive to use.
  • All models have been designed with a keen focus on ergonomics and workflow in a commercial kitchen.
Wide choice of cuts
  • They can be fitted with a wide range of discs and grids of the highest cutting quality.
  • Combining these accessories together to obtain more than 35 (Compact line) / 70 (Heavy Duty line) different types of cuts and grating grades.
Maintenance, safety, hygiene
  • Lever and lid easily removable for cleaning purposes.
  • Combination of safety systems: head, cover, power switch.
  • Appliance certified by NSF International (regulations on hygiene, cleaning and materials suitable for contact with foods).
  • 100% tested.
comparison table  (  yes    optional   — no )
CA-21
CA-31
CA-41
CA-62
CA-2V
CA-3V
CA-4V
Selection guide
Covers (from / to)
10 – 50
100 – 450
100 – 600
200 – 1000
10 – 50
100 – 450
100 – 600
Hourly production
50 – 350 kg
150 – 450 kg
200 – 650 kg
500 – 1000 kg
50 – 350 kg
150 – 500 kg
200 – 650 kg
Features
Inlet opening
89 cm²
136 cm²
286 cm²
273 cm²
89 cm²
136 cm²
286 cm²
Motor speed
1500 rpm
365 rpm
365 rpm
365 – 730 rpm
300 – 1000 rpm
300 – 1000 rpm
300 – 1000 rpm
Loading
Single Phase
800 W
550 W
550 W
1100 W
1500 W
1500 W
Three phase
550 W
550 W
750 W
External dimensions (W x D x H)
External dimensions (W x D x H)
378 x 309 x 533 mm
389 x 405 x 544 mm
391 x 396 x 652 mm
430 x 420 x 810 mm
378 x 309 x 533 mm
391 x 409 x 552 mm
391 x 400 x 652 mm
Net weight
15.2 kg
21 kg
24 kg
29.5 kg
12.9 kg
24 kg
27 kg
